Outdoor COB LED

---

COB stands for Chip on Board. It is a method of encapsulating LED chips in which arrays of LED chips are bonded directly to a printed circuit board (PCB) and then covered by epoxy.

Unlike SMD LEDs, each chip does not have its own lead frame, bonding wire and packaging. This means that the chips can be mounted closely together on the PCB, paving the way for ultra-high-definition LED screens.

Since COB technology eliminates the packaging of individual LED chips, it makes the LED tile to be more stable and durable. A COB LED tile features larger viewing angle, lesser heat emission, anti-scratch, anti-corrosion, anti-static, dust-proof and waterproof.

Outdoor COB Series bring a fresh air to the rental and staging markets. Day or night, they offer stunning image quality in both dimmed and high brightness modes, which makes them a perfect solution for both indoor and outdoor applications.

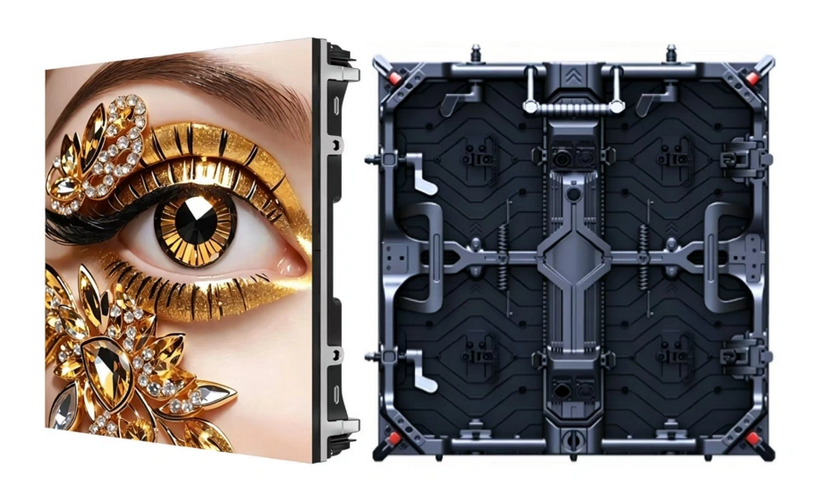

Technical details - Outdoor model

Data card: A8s-N(NovaStar)

HDR: HDR10-Optima/HLG

IP Rating: IP65/54 (front/rear)

Available Pixel Pitch: 1.56 mm, 1.98 mm;

Dimensions: 500*500*88 mm( 19.69*19.69*3.5 inch)(W*H*D)

Weight: 9.5 kg(21 lbs)/pc; 38 kg(83.78 lbs)/m²

For more information, please download and check the brochure on the botton of this page.

Fine pixel pitch LED screens are known to be very fragile, which not only brings a big challenge for installation process, but also is a headache for maintenance.

Our indoor COB series relieve the headaches of traditional fine pixel pitch LED screens. Powered by COB technology, the indoor COB series delivers everything you have been dreaming about for the fine pixel pitch LED screens: anti-crash, anti-static, anti-corrosion, dust-proof and water-proof (front: IP 65).

With larger viewing angle, lesser heat emission and a contrast ration of 10000:1, the indoor COB series present a much better image. They are also an energy-saving solution, max. 91W/tile or 450W/m².

Technical details - Model A

Data card: A8s-N/A10s Plus-N(NovaStar)

HDR: HDR10-Optima/HLG

IP Rating: IP65/30 (front/rear)

Available Pixel Pitch: 0.93 mm, 1.25 mm, 1.56 mm, 1.87 mm;

Dimensions: 600*337.5*39 mm(23.62*13.29*1.54 inch) (W*H*D)

Weight: 4.3 kg(9.48 lbs)/pc; 23.24 kg(46.83 lbs)/m²

For more information, please download and check the brochure on the botton of this page.

Economic edition, available at diefferent dimensions: 500 x 500 x 50 mm, 500 x 250 x 50 mm, 1000 x 500 x 50 mm and 1000 x 250 x 50 mm, support cube and cuboid configuration.

Technical details - Model E

Data card: A8s-N(NovaStar)

HDR: HDR10-Optima/HLG

IP Rating: IP65/30 (front/rear)

Available Pixel Pitch: 1.25 mm, 1.56 mm, 1.87 mm

Dimensions: 500*500*50 mm; 19.69*19.69*1.97 inch (W*H*D)

Optional: 1000*500mm, 1000*250mm, 500*250mm

Weight: 6.5 kg (14.33 lb)/pc; 26 kg (50.71 lb)/m²
